Product Description
Afe Power
85 MM Throttle Body
for 2018-2023 Ford Mustang GT 5.0L
for 2018-2023 Ford F-150 5.0L
for 2020-2022 Ford F-250 F-350 Superduty 6.2L 7.3L
Part# 46-39101

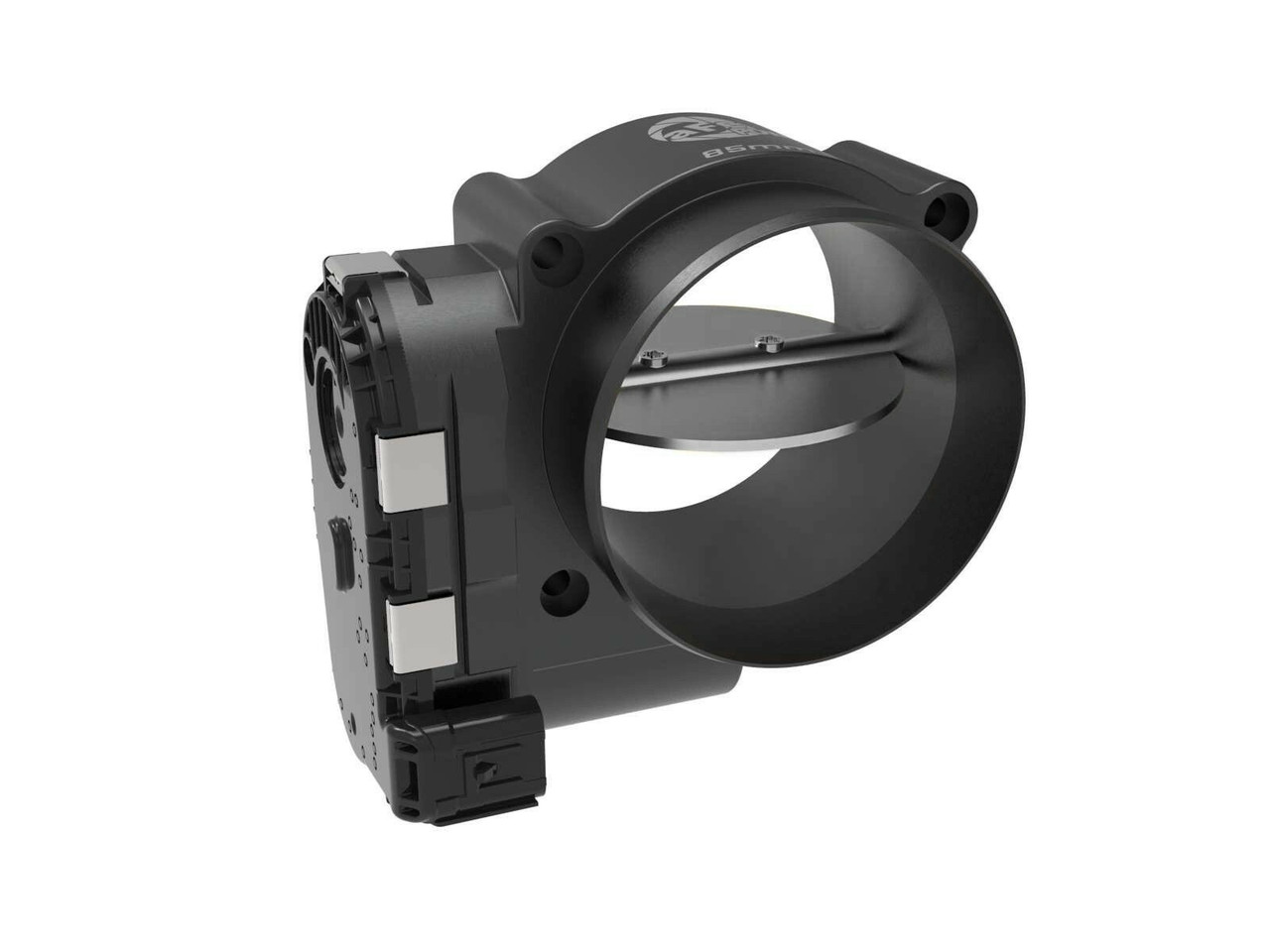

85 MM Throttle Body
for 2018-2023 Ford Mustang GT 5.0L
for 2018-2023 Ford F-150 5.0L
for 2020-2022 Ford F-250 F-350 Superduty 6.2L 7.3L
Part# 46-39101

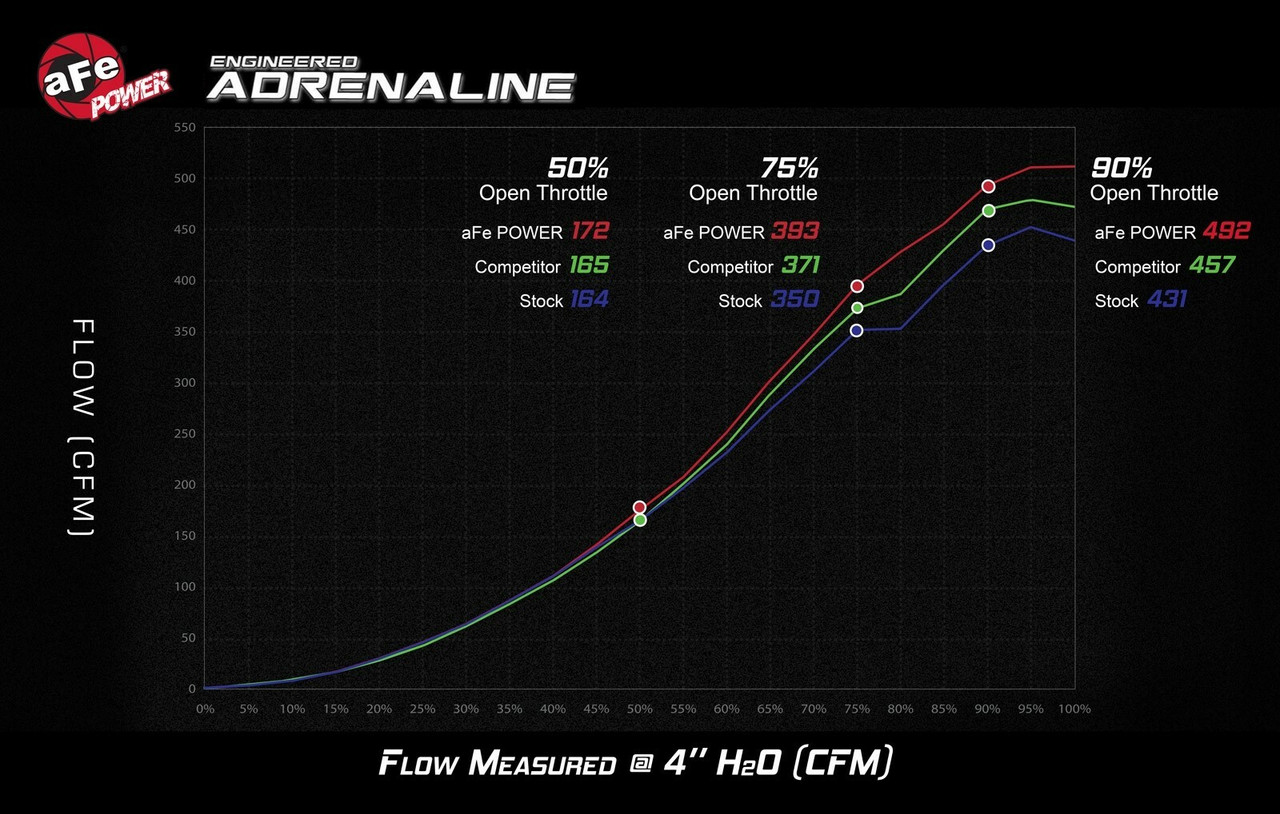

Test results on aFe's Dynojet dyno showed power gains across the power band, topping out at +17 HP and +15 lb-ft torque at 6,000 rpm. Testing was conducted on a 2020 Mustang 5.0 comparing stock and the aFe Power BTB (all tests conducted using 91-octane fuel). No other modifications to the vehicle were made, so imagine the potential when you add in other performance enhancing products such as a cold air intake, tuner and cat-back exhaust! By the way, for you truck enthusiasts, this product also fits the F-Series (see application table for exact vehicle fitment). Not only did we increase the bore diameter from the stock 80 mm to 85 mm, we redesigned the throttle body from the ground up, aerodynamically improving the air flow path.
Why 85 mm and not larger? 3 reasons:
1) At 85 mm, no custom tuning is required so this works right out of the box
2) The 85 mm diameter provides a direct path into the 84 mm intake manifold opening, a larger diameter would require modification to the stock manifold, or use of an aftermarket one

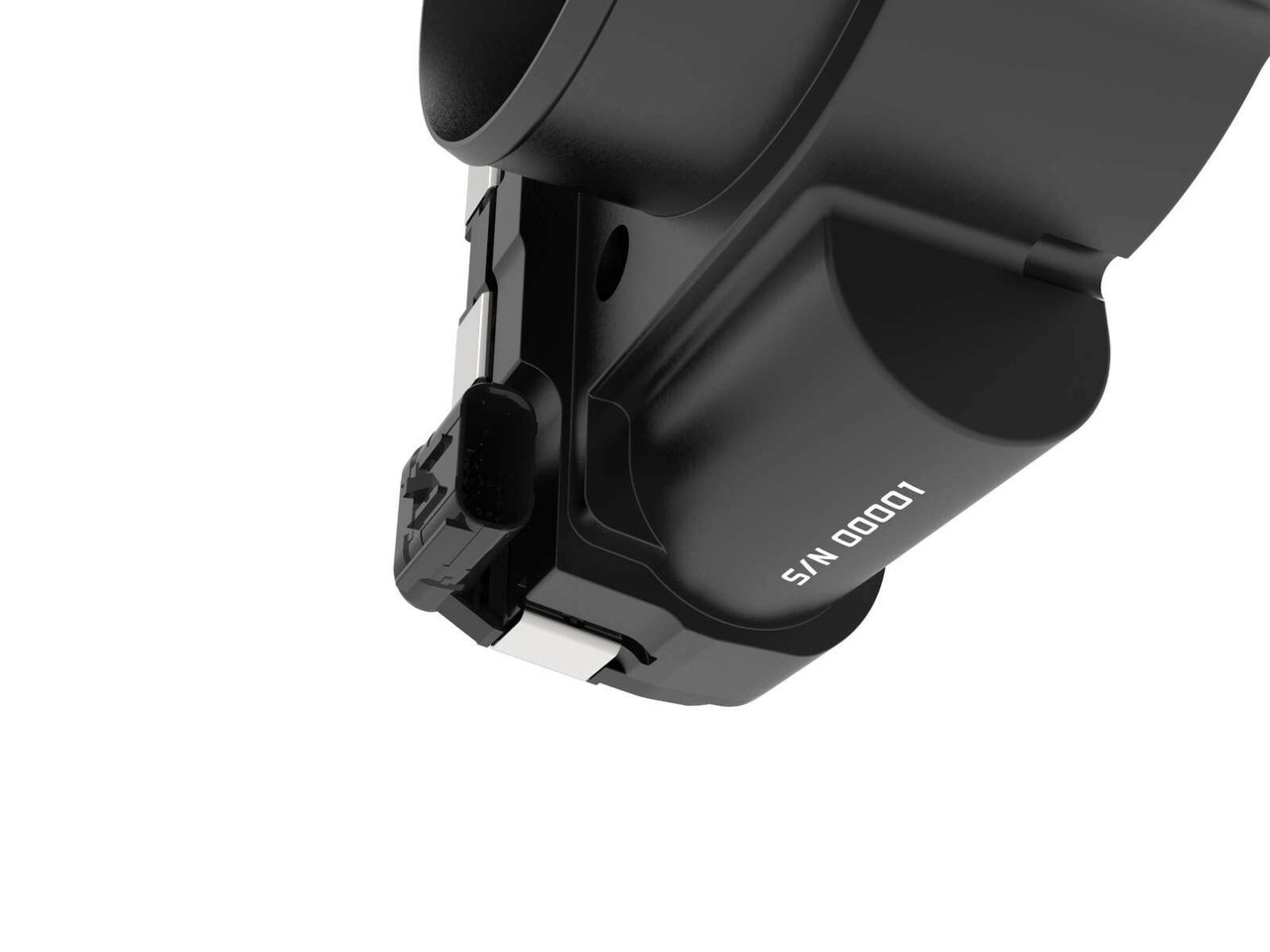

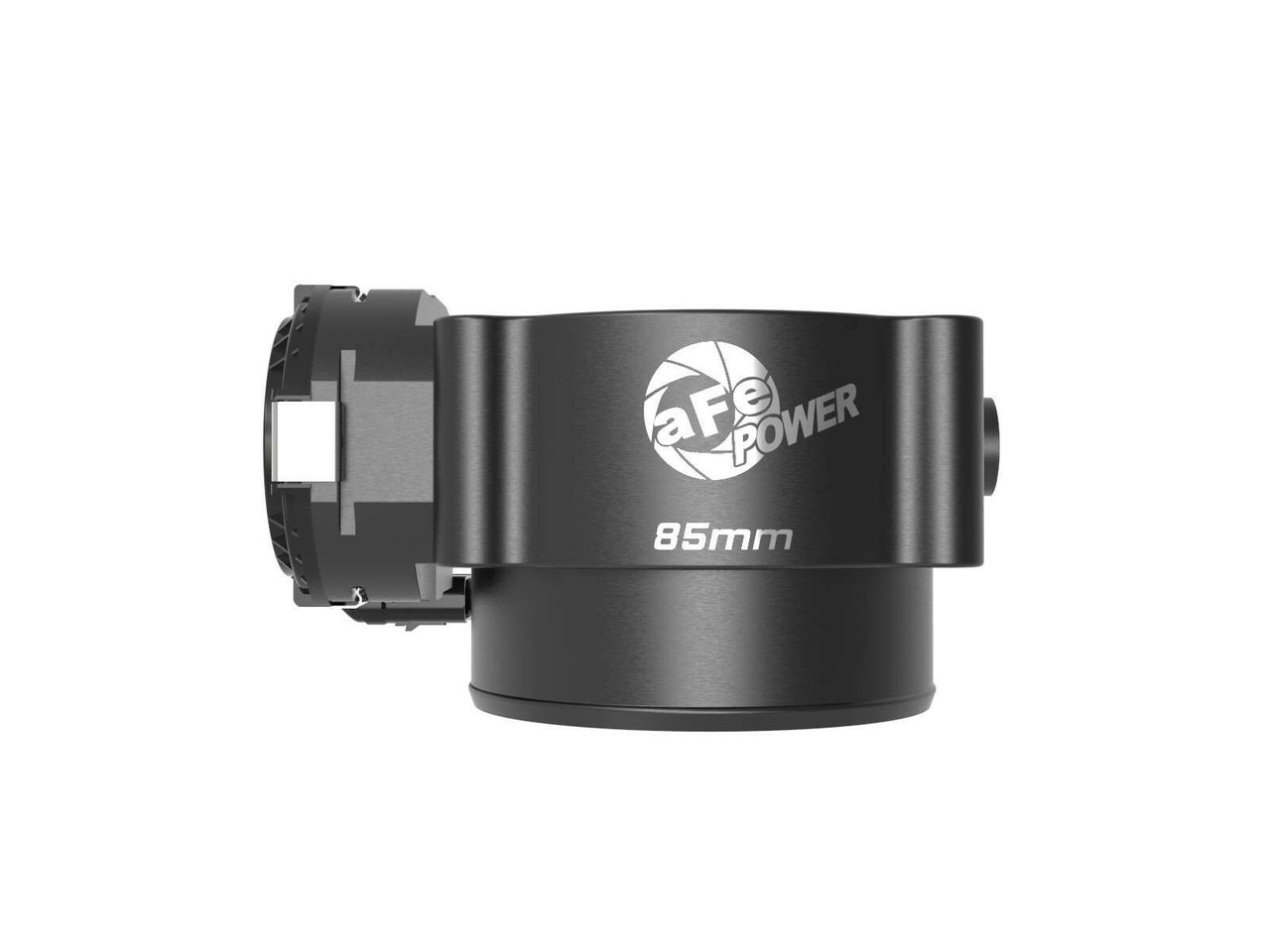

3) The mounting diameter for your intake tube is only slightly increased, but it allows you to retain the stock intake tube or you can upgrade to a cold air intake without having any special adapters. Not wanting to be like the rest, aFe chose to make the BTB out of billet 6061-T6 aluminum, precision machined and capped off with a black anodized finish for that stealthy custom look. As a finishing touch, we have laser etched the aFe Power logo and throttle body size right on the top. The throttle plate is made of brass, the significance here is to eliminate the chance of galling against the aluminum body. Each throttle body is serialized for authenticity.
Features & Benefits
- Increases Air Speed, Improving Performance And Throttle Response
- Unique Serrated And Helix Entry Design Creates Turbulence And Reduces Whistle Sound
- Aerodynamically Designed Flow Path, Dyno Proven Horse Power And Torque Gains
- Retains OEM Electronics And Gearing Mechanism, No Rough Idling, No CEL
- Billet Aluminum, Precision Machined, Black Anodized Finish, Perfect Fitment, Subtle, Custom Look
